The main application scenarios of Ritman laser cutting machine in the steel structure industry

1、 Cutting of sheet metal components (the most basic and largest quantity)

Connecting plate, node plate, stiffening plate

Beam column nodes, cow legs, support connecting plates, column footboards, shear wall connecting plates and other irregular plate components.

Accessories for purlins, wall beams, and roof beams

Various small-sized irregular steel plates, reinforcing plates, and sealing plates.

Trusses, grid structures, and lattice column accessories

Web connecting plate, node cover plate, and patch plate.

Stairs, platforms, railing steel plates

Step board, patterned board opening, guardrail bottom plate.

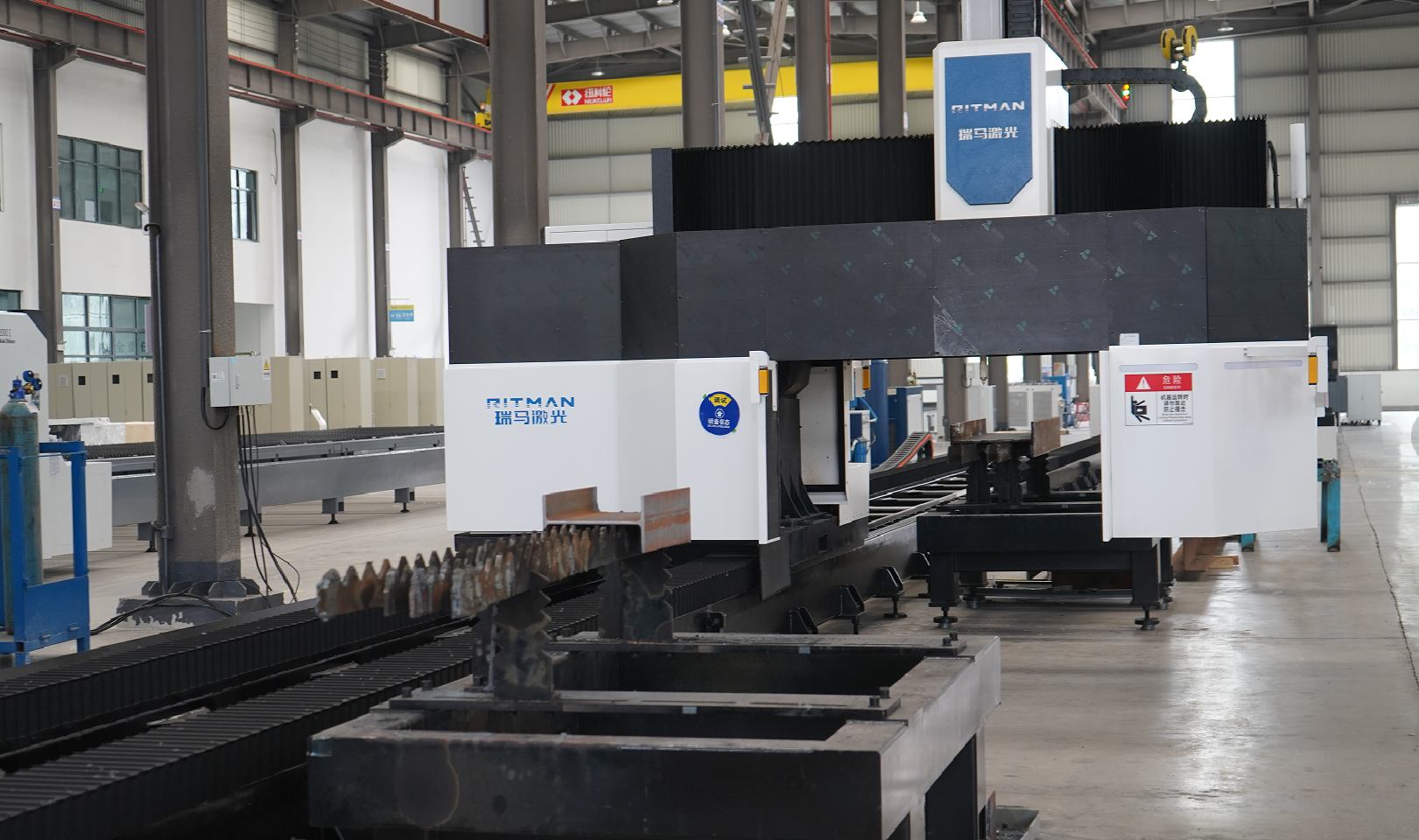

2、 3D processing of H-beam/I-beam/channel steel/angle steel (core value-added scenario)

Cutting of steel end+cutting of lock mouth

Beam column docking, beam column cow legs, truss intersection.

Wing/web plate opening

Bolt holes, pipe holes, welding holes, ventilation holes, grouting holes.

One time forming of end groove

V-shaped, X-shaped, Y-shaped, and K-shaped grooves directly meet welding requirements.

Cutting of shaped steel profiles

Slant cut, oblique cut, curved cut, variable cross-section cut.

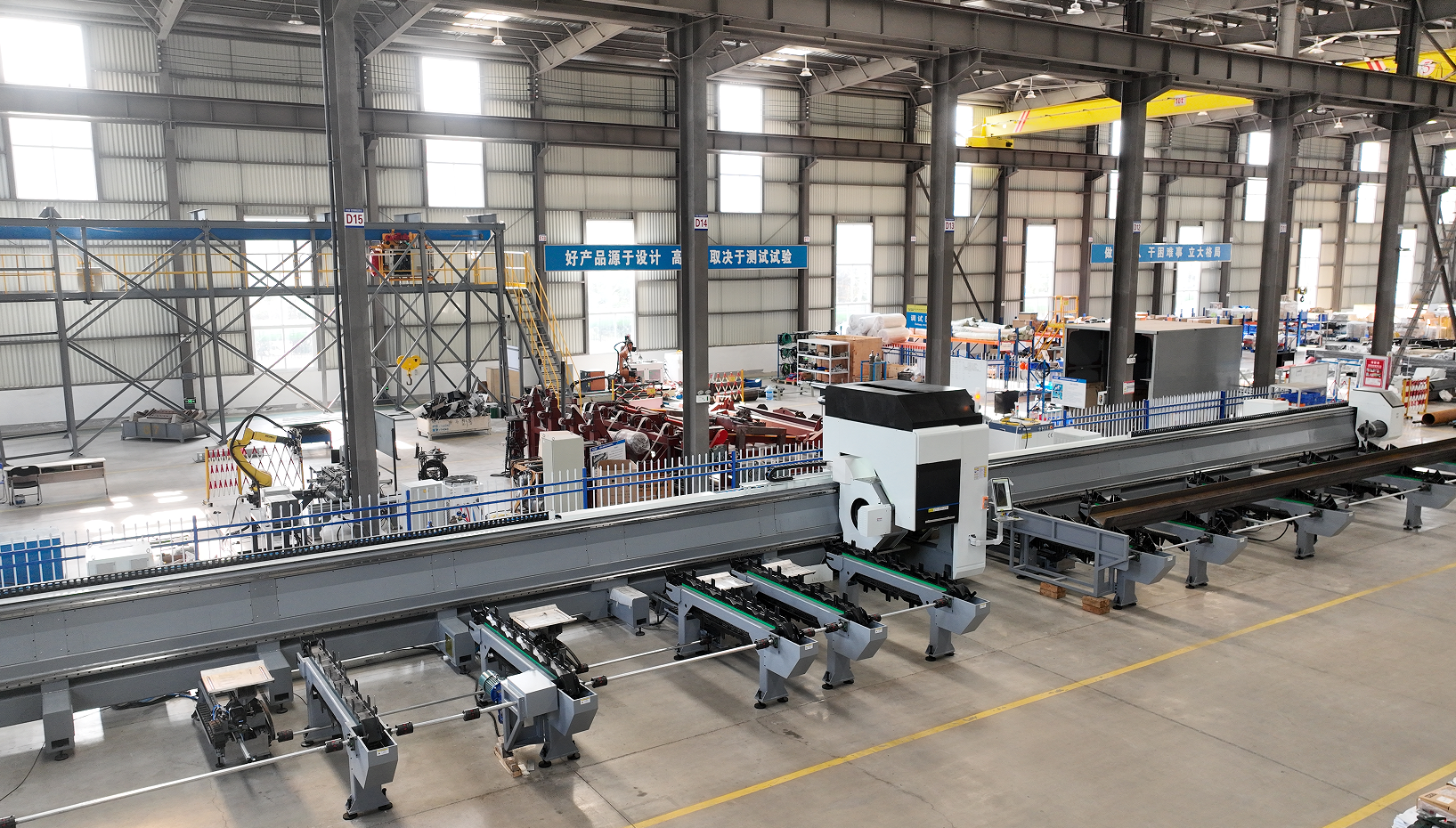

3、 Cutting of intersecting lines of steel pipes/round pipes/square pipes

Intersection of pipe truss and spatial steel structure

Gymnasium, exhibition hall, bridge arch ribs, tower structures.

Cutting of beam column steel pipe nodes

Round tubular column, square tubular column and slant support are connected.

Guardrails, brackets, lamp posts, steel structure brackets

Cutting, drilling, and chamfering of various pipe structures.

4、 Integrated process in steel structure prefabrication processing

Integrated cutting and marking

The part number, hole identification, and assembly line number are directly laser marked.

Precision cutting of thick plates

Bridges, heavy-duty factories, and engineering machinery structural components (20-50mm thick plates).

Rapid processing of small batches and multiple varieties of irregular parts

Replace flame/plasma to reduce polishing, correction, and secondary processing.

5、 Prefabricated steel structure and BIM digital production

Tekla model directly exports cutting program

Realize one click circulation of "design → cutting → cutting".

High precision prefabricated components

Ensure on-site assembly and zero repair, suitable for prefabricated residential and modular buildings.

Intelligent nesting and utilization of surplus materials

Improve steel utilization and reduce costs.

6、 Processing of supporting steel structure accessories

Embedded parts, foundation bolt plates

Steel structure supports, pads, and blocks

Maintenance platform, ladder, canopy steel components
