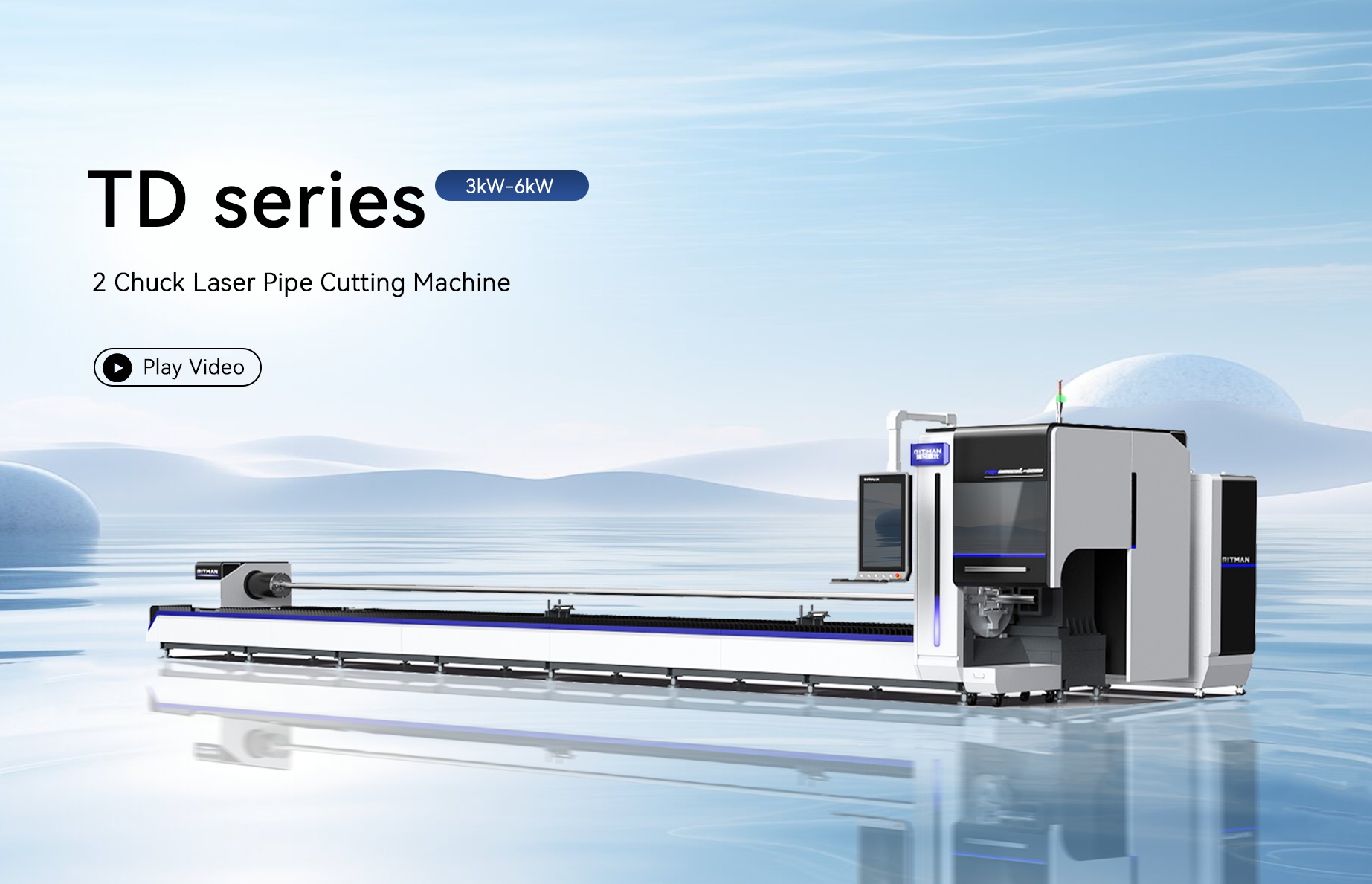

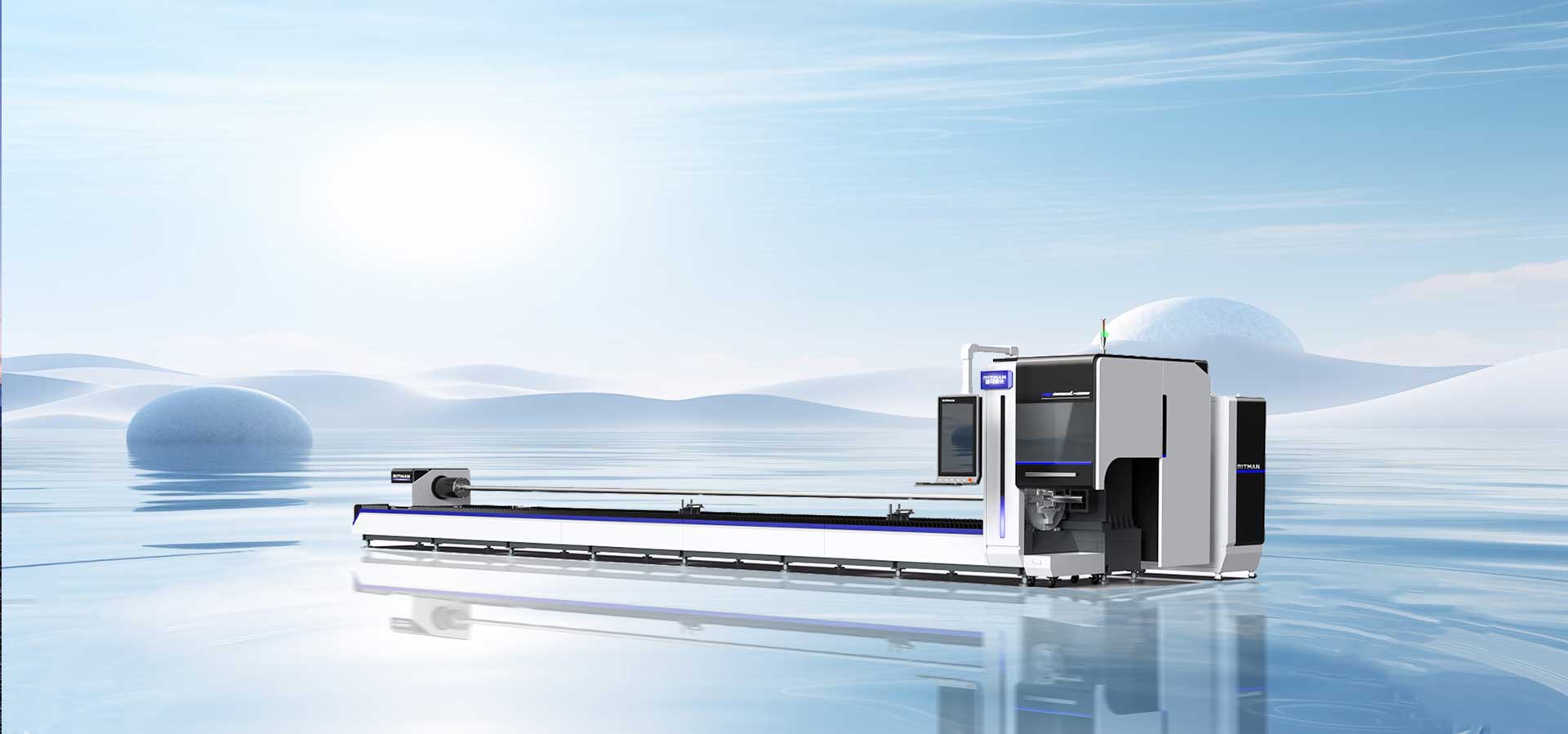

TD series


2 Chuck Laser Pipe Cutting Machine



Play Video

Pipe size range

10-120mm

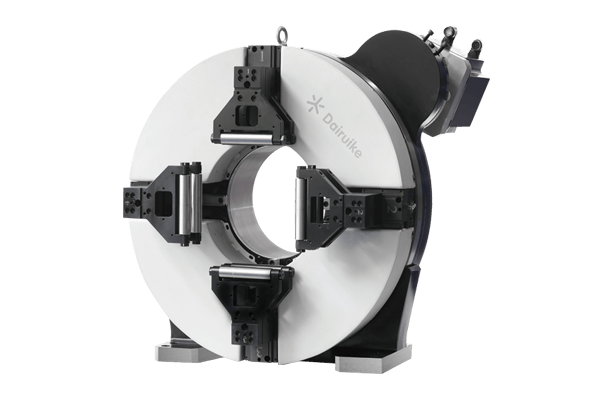

Custom chucks tailored to your workpiece.

Every workpiece has its own unique intricacies. Don't settle for standard sizes! We offer flexible chuck customization to perfectly match your specific workpieces and unique processing requirements.


Available models

RM-LC TD7013  /  RM-LC TD7013C  /  RM-LC TD7513

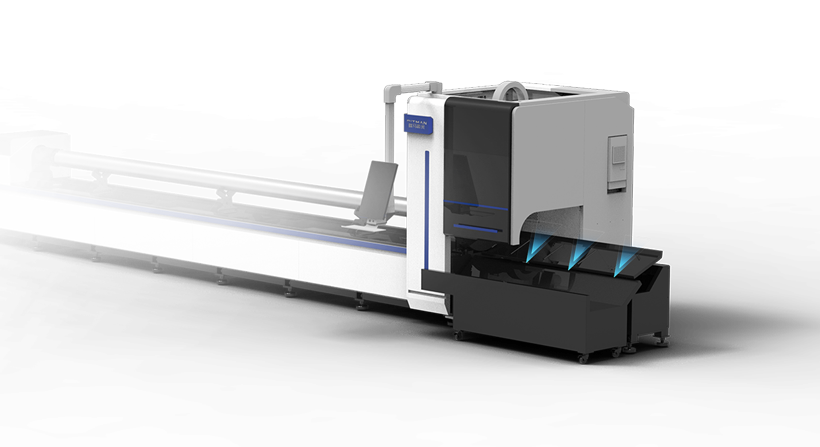

Receiving Machine

There are three different types available: servo driven feeding machines for square pipes, rectangular pipes, profiles, and complex cross-section pipes; Variable diameter wheel inclined surface material receiving frame is used for round and square pipes, A simple inclined material receiving frame is used for shorter and lighter round and square pipes.

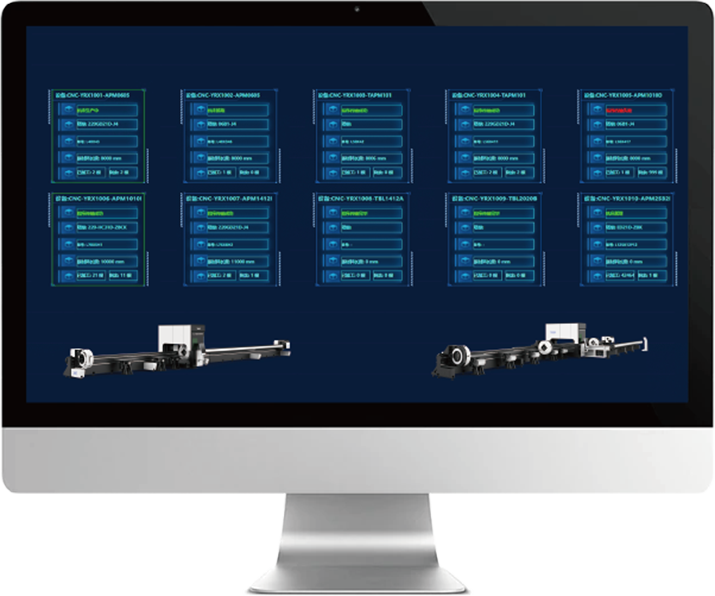

Fully Self-developed Mes System

The equipment is equipped with a fully self-developed MES system, lean production, job scheduling, production process monitoring, quality management and other functions, effectively improving order response speed and production efficiency

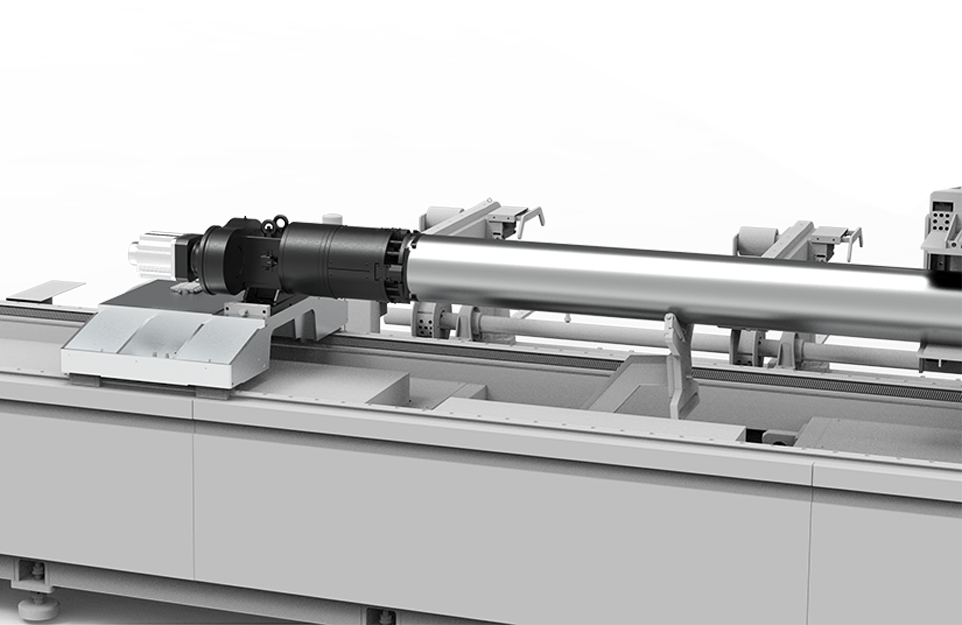

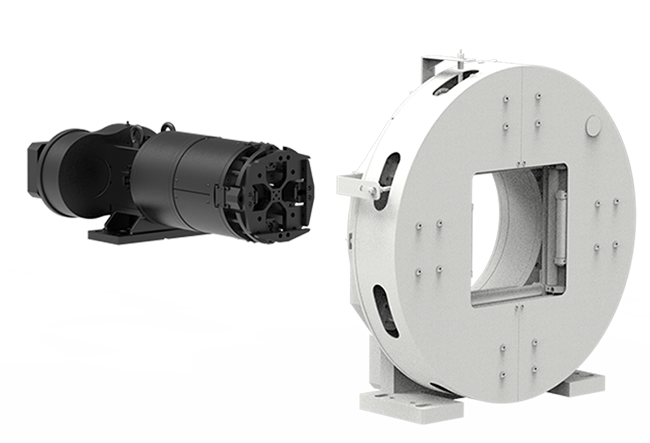

Lightweight And Sturdy Card Holder

The tail card holder is designed with a high load-bearing box, which is lightweight and has good rigidity

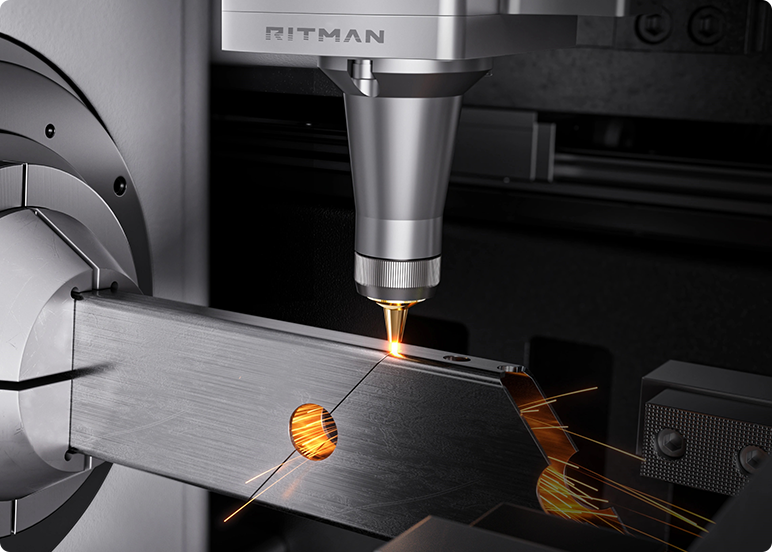

Cut Tubes at High Speed

The chucks rotate and move at the speed of 120r/min and

120m/min respectively, With that, users will enjoy fast cutting.

stable services and high production.

Max. Chuck rotating speed:

150r/min

Maximum operating speed:

100m/min

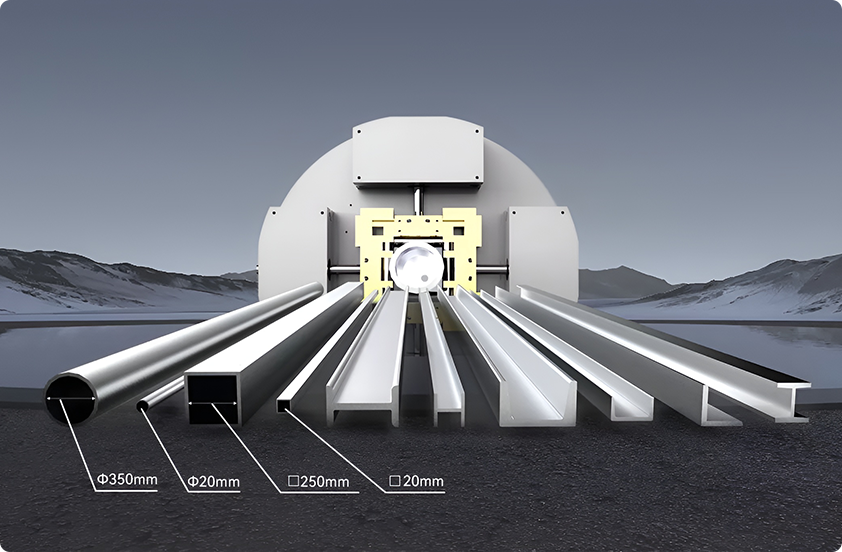

Universal for all types of tubes

Cutting of round, square, rectangular and ellipticaltubes and most other shaped tubes





Application Sectors

Chassis cabinets, advertising, automotive manufacturing, elevator manufacturing, kitchen cabinets, fitness equipment
