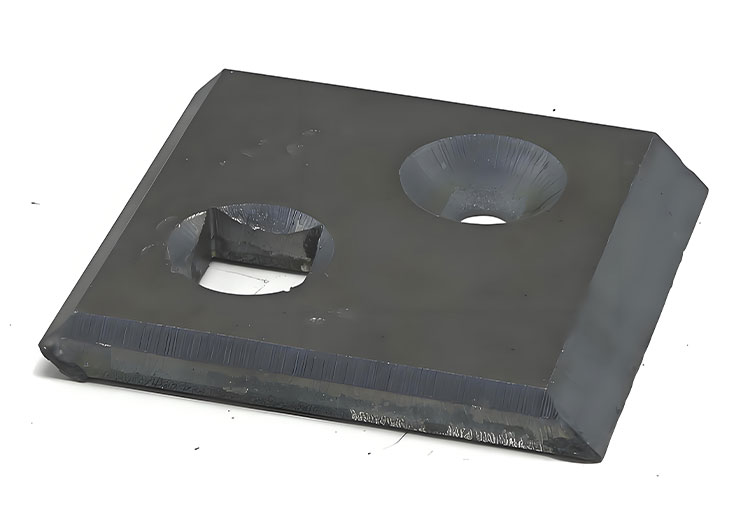

The ideal result of laser cutting stainless steel is a bright, silvery-white, oxide-free cut. Blackened edges indicate significant oxidation or slag adhesion, which not only affects the aesthetics of the product but also:

Reduced corrosion resistance: The oxide layer destroys the stainless steel's "passivation film," making it more susceptible to rust.

Increased post-processing costs: Additional cleaning steps (such as grinding and pickling) are required, increasing time and labor costs.

Impact on welding quality: Blackened edges can cause defects such as porosity and slag inclusions during welding.

I. Core Cause: Assist Gas Issues (Most Common)

1. Incorrect Gas Type

Cause: Oxygen (O₂) is mistakenly used instead of nitrogen (N₂) when cutting stainless steel.

The function of oxygen: It undergoes a violent oxidation reaction (combustion) with the iron element, providing additional heat. This produces black chromium oxide (Cr₂O₃) and iron oxide (FeO), which are the black edges you see.

Nitrogen's function: It acts as an inert shielding gas, blowing away the molten metal and preventing it from reacting with oxygen in the air, resulting in a clean, oxidation-free cut surface.

Solution: Check and switch the gas immediately! High-purity nitrogen (N₂) is essential for cutting stainless steel.

2. Inadequate Gas Purity

Cause: Even if nitrogen is used, if its purity is insufficient (for example, below 99.99%), small amounts of oxygen and moisture present in it can still react with the molten metal, causing an oxidation reaction.

Solution: Ensure nitrogen purity of 99.99% (four nines) or higher. For more demanding applications (such as plate thicknesses over 8mm or food and medical grade), 99.999% (five nines) nitrogen is recommended.

3. Inadequate Gas Pressure

Inadequate pressure:

Cause: The gas pressure is insufficient to completely and quickly blow the molten metal away from the cut. This molten metal recondenses at the bottom and, due to heat accumulation, oxidizes and turns black.

Symptom: Severe dross is present at the bottom of the cut, accompanied by a blackening effect.

Pressure Too High:

Cause: Excessive airflow cools the cutting area, affecting energy absorption. High-speed airflow can also create vortices, drawing air into the cutting zone and causing oxidation.

Symptom: Cuts may not be through, resulting in rough, blackened edges.

Solution: Adjust the air pressure to the recommended value based on the plate thickness and cutting speed. Generally, thicker plates require higher air pressure (refer to the equipment manufacturer's data sheet).

II. Process Parameter Issues

1. Laser Power Too Low or Too High

Too Low Power: Insufficient energy prevents the material from fully melting and vaporizing, resulting in poor melt discharge and dross oxidation and blackening.

Too High Power: Excessive energy input can cause over-melting, melting too much material, preventing nitrogen from being blown away in time. This over-melted metal forms black oxide upon cooling.

Solution: Optimize laser power based on thickness to find the optimal power-speed balance.

2. Cutting Speed Mismatch

Slow Speed: The laser energy stays on a unit area for too long, causing overburning and excessive oxidation and blackening of the material.

Speed Too Fast: Insufficient energy input, similar to underpower, results in incomplete material penetration, with slag hanging at the bottom and oxidizing.

Solution: Optimize the cutting speed. Observe the spark: If the spark tilts backward, the speed is too high; if the spark tilts forward or does not diverge, the speed is too slow. Adjust the speed so that the spark points vertically downward.

3. Inaccurate Focus Position

Cause: The focus position determines the point where energy density is most concentrated. A shifted focus results in poor energy concentration, reduced cutting performance, increased slag, and oxidation and blackening.

Solution: Recalibrate the focus. Check and set the correct focus position (typically, a more negative depth of focus is required for cutting thicker plates).

III. Equipment Condition Issues

1. Nozzle Wear or Improper Selection

A damaged or deformed nozzle disrupts the concentricity and laminarity of the airflow, forming vortices that entrain air and cause oxidation.

Improper Nozzle Aperture: Small-aperture nozzles cannot provide the required airflow for thick plate cutting.

Solution: Regularly inspect and replace nozzles. Select a nozzle with an appropriate aperture based on the plate thickness (large apertures, such as φ2.0mm or larger, are recommended for thick plates).

2. Optical Lens Contamination

Cause: A contaminated protective lens or focusing lens attenuates laser power, resulting in insufficient effective power, effectively acting as a disguised "underpower," which can cause slag and blackening.

Solution: Regularly clean or replace the optical lens to ensure efficient laser energy transmission.

IV. Material Issues

Cause: Low-quality stainless steel plates may have an oil film, impurities on the surface, or uneven alloy composition. These can affect the stability of the cutting process and lead to abnormal oxidation.

Solution: Try replacing a batch of stainless steel plates from a higher-quality, more reputable brand for testing.
