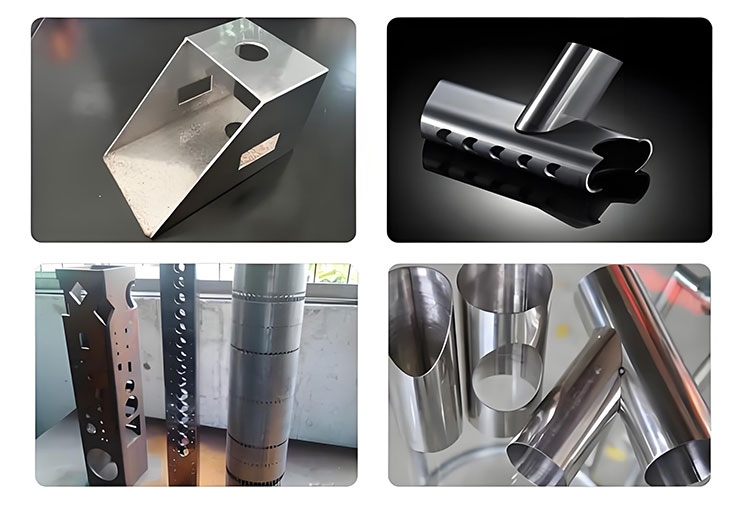

Poor hole-cutting performance with a laser tube cutting machine may be due to multiple factors. These factors require step-by-step investigation and adjustment, focusing on equipment parameters, material properties, and process settings. The following are detailed adjustment suggestions:

1. Check the laser parameters

Power setting: Too low a power setting will result in incomplete perforation, while too high a power setting may result in excessive ablation.

Adjustment suggestion: Select the appropriate power based on the tube material and thickness (for example, stainless steel requires higher power, while carbon steel can be slightly lower), and test step-by-step parameters (e.g., adjusting from low to high).

Pulse frequency/duty cycle: High-frequency pulses are suitable for thin tubes, while low-frequency pulses are suitable for thick tubes. A high duty cycle can easily lead to heat accumulation, while a low duty cycle can result in insufficient energy.

Adjustment suggestion: Try reducing the frequency (e.g., from 1000Hz to 500Hz) or adjusting the duty cycle (e.g., from 50% to 70%).

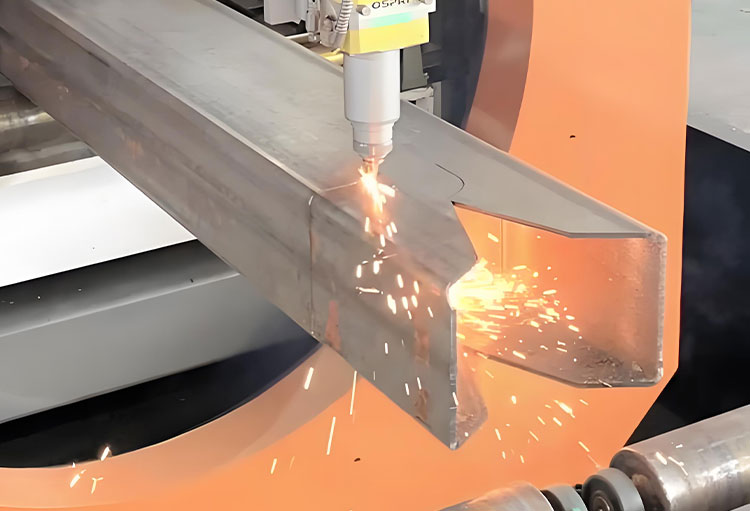

2. Optimize the Cutting Process

Piercing Time and Method: Insufficient piercing time will result in failure to penetrate the pipe, while excessive piercing time will result in slag formation.

Adjustment Suggestion: Increase the piercing time (for example, from 0.5s to 1s).

Use a progressive piercing method (e.g., preheat at low power first, then penetrate at full power).

For thick-walled pipes, use Burst Mode or layered piercing.

Gas Type and Pressure: Oxygen is suitable for carbon steel (to aid combustion), while nitrogen is suitable for stainless steel (to prevent oxidation). Insufficient pressure will result in slag residue.

Adjustment Suggestion: Check that the gas pressure is stable (usually 0.8-1.2 MPa for oxygen and 1.5-2.0 MPa for nitrogen).

Change to a high-purity gas (purity ≥99.9%).

3. Focus Position and Beam Quality

Focus Offset: A focus offset from the pipe surface will cause energy dispersion.

Adjustment Suggestion: Recalibrate the focus to ensure it is centered on the pipe (use a focus calibration plate to test).

For thick tubes, try negative defocus (focusing deeper into the material).

Lens Cleaning and Alignment: Dirty or aged lenses can reduce beam quality.

Solution: Clean or replace the lens regularly and check the optical path for alignment.

4. Tube and Clamping Issues

Tube Surface Condition: Rust, oil, or coatings can affect laser absorption.

Solution: Clean the tube surface and polish if necessary.

Clamping Stability: Tube shake can cause the piercing position to shift.

Adjustment Suggestions: Check that the clamp is securely clamped to avoid excessive overhang.

Use a tailstock support or add auxiliary fixtures.

5. Software and Motion Control

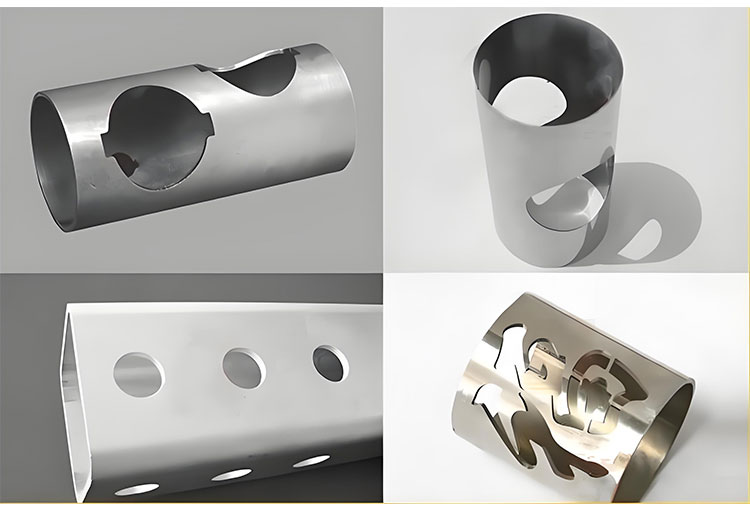

Cutting Path Optimization: Holes placed too close to the tube edge can easily cause deformation.

Adjustment Suggestions: Allow sufficient clearance when programming (e.g., at least 1.5 times the hole diameter).

Use a spiral feed or pre-drilling process.

Speed Matching: Increasing speed immediately after piercing can result in inconsistent cutting.

Adjustment Suggestions: Set a reasonable "pierce-to-cut" transition speed (e.g., start with a low-speed cut and then accelerate to normal cutting speed).

6. Other Factors

Nozzle Condition and Height: Nozzle wear or incorrect height can affect airflow focusing.

Troubleshooting: Replace the nozzle and adjust the height (usually 0.8-1.5mm, depending on the hole diameter).

Material Thickness and Type: Highly reflective materials (such as aluminum and copper) require special parameters.

Adjustment Suggestions: For highly reflective materials, use an anti-reflective coating or switch to a fiber laser.

Quick Troubleshooting Process

Observational Phenomena:

Extensive burrs on the hole edge? → Check gas pressure or focus.

No penetration? → Increase power or pierce time.

Hole deformation? → Reduce speed or optimize clamping.

Record parameters: Compare parameter differences with successful cases and adjust incrementally.

Test Cut Verification: Adjust only one parameter at a time and record the results.

Through systematic troubleshooting and parameter optimization, hole quality can be significantly improved. If the problem persists, it is recommended to contact the equipment manufacturer for beam quality testing or mechanical accuracy calibration.
