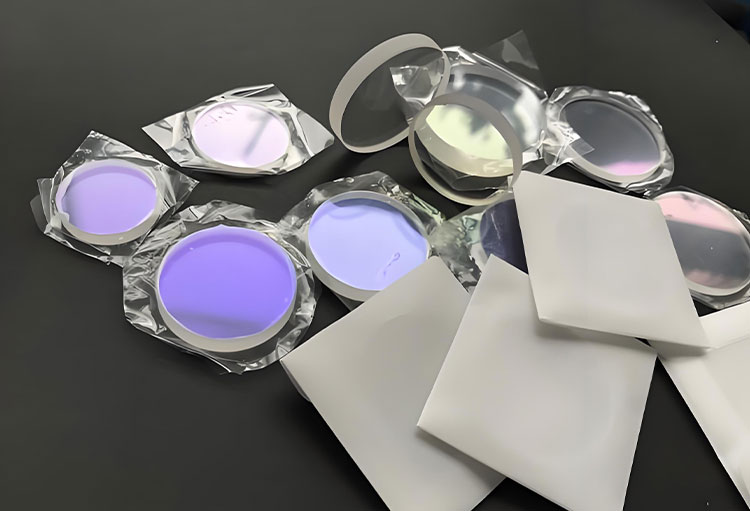

Laser lenses (especially the focusing lens) are delicate because of their delicate coating. Cleaning is essential to remove contaminants while avoiding any new scratches or damage.

I. Required Tools (Must Prepare in Advance)

High-purity anhydrous ethanol or acetone: 99.9% or higher anhydrous ethanol is recommended. Acetone is more effective at removing oils, but ensure its purity and that the operating space is well ventilated.

Dust-free Wiping Paper: Use special lens tissue or medical-grade degreased cotton swabs. Never use fibrous materials such as paper towels, clothing, or regular cotton swabs.

Rubber Blower: Used to remove large dust particles. Never use your mouth to avoid contaminating the lens with saliva.

Dust-free Gloves: Protect the lens from direct contact with finger oils.

Soft Tweezers: Used to grasp the edge of the lens, avoiding direct hand contact.

II. Safety and Preparation

1. Completely shut down the equipment and disconnect the power cord. Wait for the laser and lens to cool completely.

2. Wear dust-free gloves and laser safety goggles.

3. Working Environment: Select a clean, dust-free, and well-lit work surface.

III. Step-by-Step Cleaning Guide

Step 1: Lens Removal

Use the designated tool or your hands (wearing gloves) to gently unscrew the lens mount pressure ring.

Use tweezers to gently grasp the edge (non-optical side) of the lens, remove it, and place it on a clean cleaning paper. Remember to always position the lens on the front and back (usually the coating side facing down).

Step 2: Initial Blowout

Use a rubber blower to gently blow across the lens surface from all angles to remove loose dust and particles. This step will prevent scratches during subsequent cleaning.

Step 3: Apply Cleaner

Apply 1-2 drops of cleaning agent (ethanol or acetone) to a new, dust-free cleaning paper to moisten it. Do not apply the cleaning agent directly to the lens, as this may penetrate the coating around the edge.

Step 4: Gently Wipe

Start with the moistened cleaning paper at the center of the lens and slowly wipe in a spiral motion toward the outer edges. Don't wipe back and forth! Use a new, clean area of the paper each time.

If the stain is heavy, repeat this process with several different wipes until the paper is free of stains.

Step 5: Inspection and Installation

Hold the cleaned lens toward a light source (such as an LED) and inspect it carefully.

Accept: The lens is clear, with no visible stains, water marks, or fibers.

Unaccept: If stains persist, repeat steps 3 and 4.

Replacement Required: If scratches, coating burns (small, round spots of discoloration), or cracks are found, the lens is permanently damaged and must be replaced.

After ensuring the lens is clean and dry, carefully return it to the lens mount, ensuring the same orientation as before (the coated surface usually faces the direction of laser light). Tighten the pressure ring gently, avoiding overtightening that could cause lens deformation.

IV. Precautions and Common Mistakes

❌ Absolutely Do Not:

Touch the optical surface of the lens directly with your fingers.

Blowing the lens with compressed air (this may spray oil and water droplets). Use low-quality paper towels, cotton cloths, or solvents (such as window cleaner or alcohol wipes).

Excessive rubbing.

✅ Best Practices:

The protective lens should be cleaned daily; it is a consumable item that protects the expensive focusing lens.

The focusing lens does not require frequent disassembly and cleaning; deep cleaning is only required when performance deteriorates.

Store the cleaned lens in a dryer.

Before and After Cleaning Comparison

Summary: Patience and meticulousness are key to lens cleaning. By following this guide, you can effectively extend the life of the lens, ensuring stable operation of your laser cutting machine and optimal cutting quality. If you have any questions about the condition of the lens, we recommend consulting your equipment supplier.
